DB9 Volante available at Aston Martin of Austin

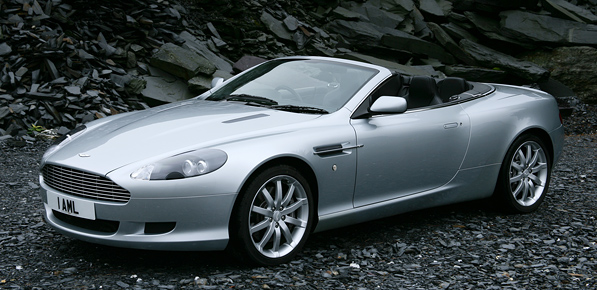

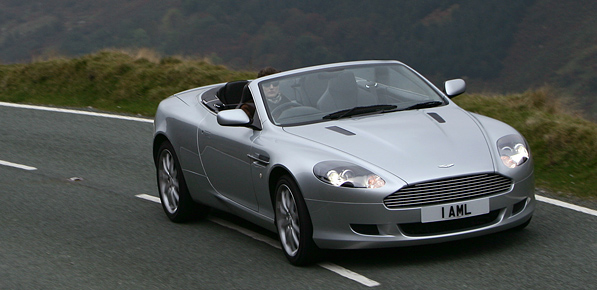

DB9 Volante

It takes one push of a button and a mere 17 seconds to raise or lower the roof of the Volante. Hood up or down, the lines of a DB9 Volante remain breathtakingly beautiful.

DB9 was conceived and designed, from the outset, as both a Coupe and a convertible (Volante). This uncompromising approach is typical of the whole DB9 engineering philosophy. That is why DB9 Volante is one of the most structurally rigid and best handling convertibles in the world. It is also one of the fastest and quietest. It looks elegant and perfectly proportioned from every angle - with roof up or down.

As with all Aston Martins, beauty and proportion is of key importance.

DB9 Volante's folding fabric roof is light, attractive and durable, and is also compact when stowed. There is no loss of practicality - DB9 Volante retains the rear seats, and offers the same boot space as DB9 Coupe.

The roof retracts fully, at the single push of a button, and swiftly stows beneath a hard tonneau cover that closes flush with the rear bodywork.

Safety is of course a major consideration. Special tilt sensors detect the danger of a possible roll-over and deploy two strengthened hoops from the rear seat headrests. Further safety protection is offered by the windscreen A-pillars, which can withstand more than twice the total weight of the car.

Body

Two-door coupe or convertible body style with 2+2 seating
Extruded aluminium bonded VH body structure
Aluminium and composite body panels
Extruded aluminium door side-impact beams
High Intensity Discharge (HID) headlamps (dipped beam)
Halogen projector headlamps (main beam) with power wash
LED rear lamps

Engine

All-alloy, quad overhead camshaft, 48-valve, 5935 cc V12
Front mid-mounted engine, rear-wheel drive
Fully catalysed stainless steel exhaust system with active bypass valves
Compression ratio 10.9:1
Max power 350 kW (470 bhp/477 PS) at 6000 rpm
Max torque 600 Nm (443 lb ft) at 5000 rpm
Acceleration – manual 0-60 mph in 4.6 sec; 0-100 km/h (0-62 mph) in 4.8 sec
Acceleration – automatic 0-60 mph in 4.6 sec; 0-100 km/h (0-62 mph) in 4.8 sec
Max speed 306 km/h (190 mph)

Transmission

Rear mid-mounted, six-speed manual gearbox
Rear mid-mounted, ‘Touchtronic 2’ six-speed gearbox with electronic shift-by-wire control system
Alloy torque tube with carbon-fibre propeller shaft
Limited-slip differential
Final-drive ratio – manual 3.54:1
Final-drive ratio – automatic 3.154:1

Steering

Rack and pinion, Servotronic speed-sensitive power-assisted steering, 3.0 turns lock-to-lock
Column tilt and reach adjustment

Wheels & tyres

19” alloy wheels – 10-spoke design
Front 8.5J x 19” Bridgestone Potenza 235/40 ZR19
Rear 9.5J x 19” Bridgestone Potenza 275/35 ZR19

Suspension

Front Independent aluminium double wishbones incorporating anti-dive geometry, coil over aluminium monotube dampers and anti-roll bar
Rear Independent aluminium double wishbones incorporating anti-squat and anti-lift geometry, coil over aluminium monotube dampers and anti-roll bar

Brakes

Front Ventilated and grooved steel discs, 355 mm diameter
Rear Ventilated and grooved steel discs, 330 mm diameter
Radial-mounted four-piston monobloc calipers
Dynamic Stability Control (DSC)
Anti-lock Braking System (ABS)
Electronic Brakeforce Distribution (EBD)
Emergency Brake Assist (EBA)
Traction control

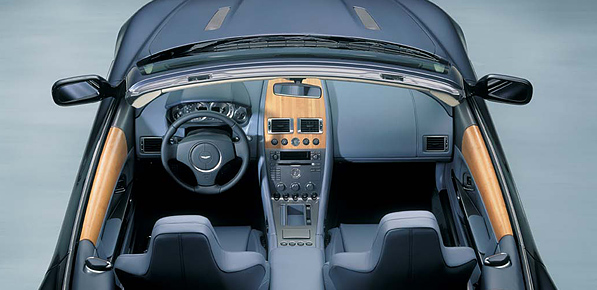

Interior

Full grain leather interior
Walnut facia trim
Iridium Silver centre console outer finish and Graphite inner finish
Auto-dimming interior rear-view mirror1 Auto-dimming interior rear-view mirror with garage door opener (USA and Canada only)
10-way electrically adjusted seats, including height, tilt and lumbar adjustment
Memory seats and exterior mirrors (three positions)
Dual-stage driver and front passenger frontal airbags
Front occupant side airbags
Automatically deployed roll-over bars (Volante)
Heated front seats
Heated rear screen
Automatic temperature control
Organic Electroluminescent (OEL) displays
LED map lamps and ambient lighting
Trip computer
Cruise control
Hard Disk Drive (HDD) satellite navigation1,2
Bluetooth telephone preparation1
Satellite radio system (USA only)
Powerfold exterior mirrors
Rear parking sensors
Tyre-pressure monitoring1
Alarm and immobiliser
Remote-control central door locking and boot release
Wind deflector (Volante only)
Battery disconnect switch
Battery conditioner1
Tracking device3 (UK only)
Boot-mounted umbrella
Lamy pen and pen holder (manual only)

In-car entertainment

Aston Martin 700 W Premium Audio System with Dolby� Pro Logic II® and a six-CD autochanger
MP3 player connectivity

Options

Bright-finish grille
Front parking sensors
Mahogany facia trim
Bamboo facia trim
Tamo Ash facia trim
Piano Black facia trim
Matching wood door trim
Personalised sill plaques
Auto-dimming interior rear-view mirror with garage door opener (Europe only)
Alarm upgrade (volumetric and tilt sensor)
Tracking device1,3
Alternative brake caliper finish – black, red and silver
Sports Pack (Coupe)
19� alloy wheels – 10-spoke with a Graphite painted finish
19� alloy wheels – 20-spoke diamond-turned
19� alloy wheels – 20-spoke diamond-turned with a Graphite painted finish
First-aid kit
Smokers’ pack

Dimensions

Length 4710 mm (185.5”)
Width 1875 mm (74”)
Height 1270 mm (50”)
Wheelbase 2745 mm (108”)
Front track 1570 mm (62”)
Rear track 1560 mm (61.5”)
Turning circle 12.0 m (39.4 ft)
Fuel capacity 80 ltr (17.6 UK gal, 21.1 US gal)
Cd (Coupe) 0.35
Kerb weight (Coupe) 1760 kg (3880 lb)

Fuel consumption4 – manual

Litres/100 km (mpg)
Urban 24.6 (11.5)
Extra-urban 11.7 (24.1)
Combined 16.4 (17.2)

Fuel consumption4 – automatic

Litres/100 km (mpg)
Urban 24.1 (11.7)
Extra-urban 10.6 (26.6)
Combined 15.6 (18.2)

Gas mileage (North America only) – manual

City 11 mpg
Highway 17 mpg

Gas mileage (North America only) – automatic

City 12 mpg
Highway 19 mpg

CO2 emissions4

389 g/km – manual
368 g/km – automatic

Smog index (North America only)

0.49

Not available in all markets, please consult your dealer for details.
Includes Traffic Messaging Channel (TMC) in Continental Europe.
Complies with UK Thatcham Category 5 requirements.
Excludes subscription.
Standard in UK.
Data not applicable to North American market.
